Descrição do produto
Details

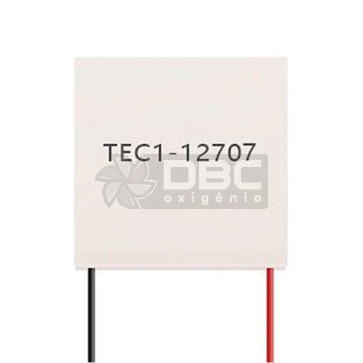

Chip model: TEC1-12707 12v
Dimensions: 40*40*3.6mm element number 127
Wire specification: lead length 300+-5mm RV standard wire single head 5mm tin plated
Internal resistance: 1.8~2.00 (ambient temperature 23+-1°C, 1kHZ Ac test)
Maximum temperature difference: Tmax (Qc=0) 62°C or more
Working current: Imax=7A
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 67W
Assembly pressure: 85N/cm2
Working environment: temperature range -55°C~83°C (excessive ambient temperature will directly affect the cooling effciency)
OBS:. Imagem ilustrativa!!
Informações adicionais
Informações adicionais
| Marca | Importado |
|---|---|
| Código do Produto | 7894650416204 |
| Garantia Meses | 3 |
